CW SERIES

CW SERIES

Brochure:



Description:

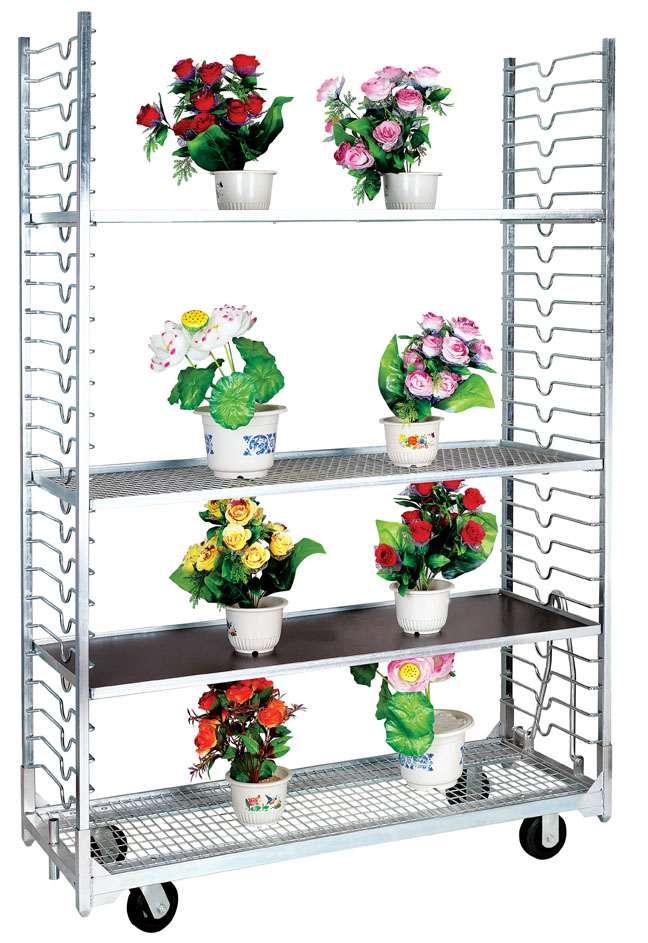

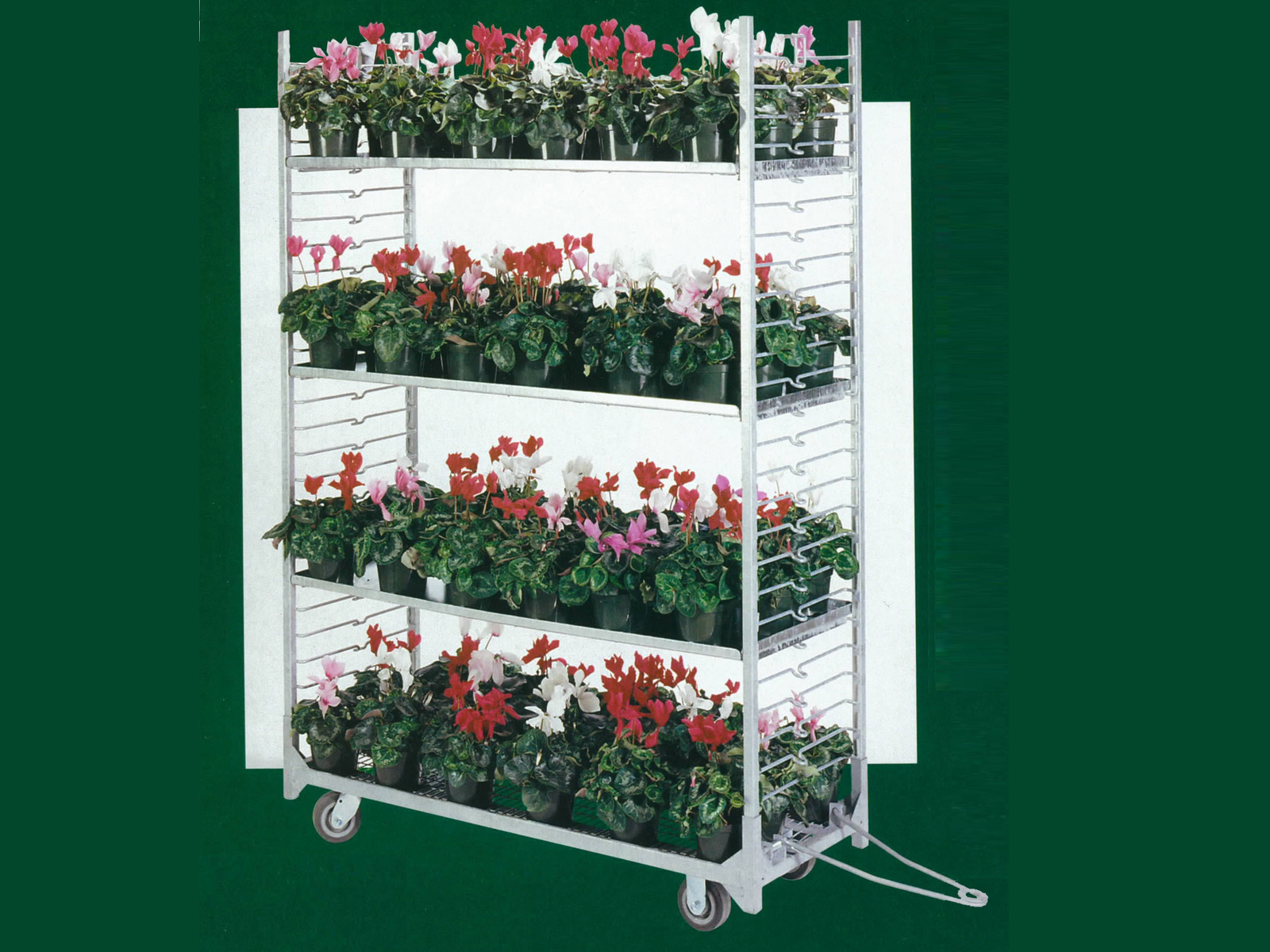

 Side Sliding Shelf Transportation Cart Uses: These units are ideally suited for shipping a wide variety of products including bedding plants, perennials, and hanging baskets.

Size:

•21" wide cart std length 59"
•21" wide cart std length 57"
•81" assembled height with 77" ladders and 2" x 5" BLUEFORMA casters
•73-1/2" assembled height with 69-1/2" ladders and 2" x 5" BLUEFORMA casters

Finish:

•Hot Dip Galvanized
•Powder Coat Painted - Either Smooth Finish or Hammertone Finish
•Electroplated
•Custom Painted For Identification Purposes

Shelf Options:

•Expanded Metal Mesh
•Solid Sheet Steel Riveted
•Solid Sheet Steel "Welded"
•21" Wide Carts are Cannon Compatible
•Inquire About Custom Inserts

Casters:

•BLUEFORMA - Quiet, Non-Marking, Cushion Ride Feature. "Maintenance Free" Precision Wheel Ball Bearings. Sealed Swivel caster Raceways. 5" x 2" Standard Wheel Size.

Optional Wheel Sizes Available. Wheel Thread Guards Keep Shrink Wrap Out.

•EZ Unitized Ball Bearing in 2" Wide by 5" Diameter
•Standard Application of 2 Rigid and 2 Swivel Per Cart
•Optional Extra is Posiloc Brake on 1 Swivel in 2" Wide by 5"
•Ask us which casters work best in your environment and/or with your products

Products To Be Shipped:

•Propagation Trays
•Bedding Plant Trays Standard - 10-1/2 x 21 True Size - 10 x 20 Slim Jims - 8 x 20
•Pots - 2" to 6" or 1 to 2 Gallon •Hanging Baskets - 8", 10" or 12" Diameters Sizes To Fit Your Truck:
•24' Truck - Inside dimensions of 94" will hold 18 carts - 22" Wide x 59" Long Carts
•26' Truck - Inside dimensions of 94" will hold 20 carts - 22" Wide x 59" Long Carts

Hitch:

Gravity Hitch
Spring Loaded Hitch

What Are They Made From:

•All steel construction, with mesh, sheet steel, or welded wire inserts Identification:
•Laser Cut Or Stamped ID Plates On Ladders And/Or Base
•Colour Coded On Base, Rail Of Shelf, Ladders Or The Whole Cart
•Roller Painted Or Powder Painted Drawbars:
•Standard, Heavy-Duty, Reinforced or Springloaded
•Length - 18" Standard, 24" Standard or 24" Heavy-Duty Ladders:
•Available in 24 and 26 shelf position
•Available in 2-5/8" and 3-1/2" spacing between ladder rails
•Available in standard length of 77" with optional lengths of 69-1/2" and 76"
•Tabs - with or without
•Ladder Ties - available •Ladders can be shortened to request length at no cost Capacity:
•Per Cart Rated at 1000 lbs. (Distributed Load)
•Per Shelf Rated at 175 lbs. (Distributed Load)

 Weight:

•Base - Includes 2" Wide x 5" Diameter Casters and Drawbar - 67 lbs.
•Shelf - Mesh - 22 lbs.
•Ladders - 37 lbs.
