CC SERIES

CC SERIESCC SERIES

Brochure:



Description:

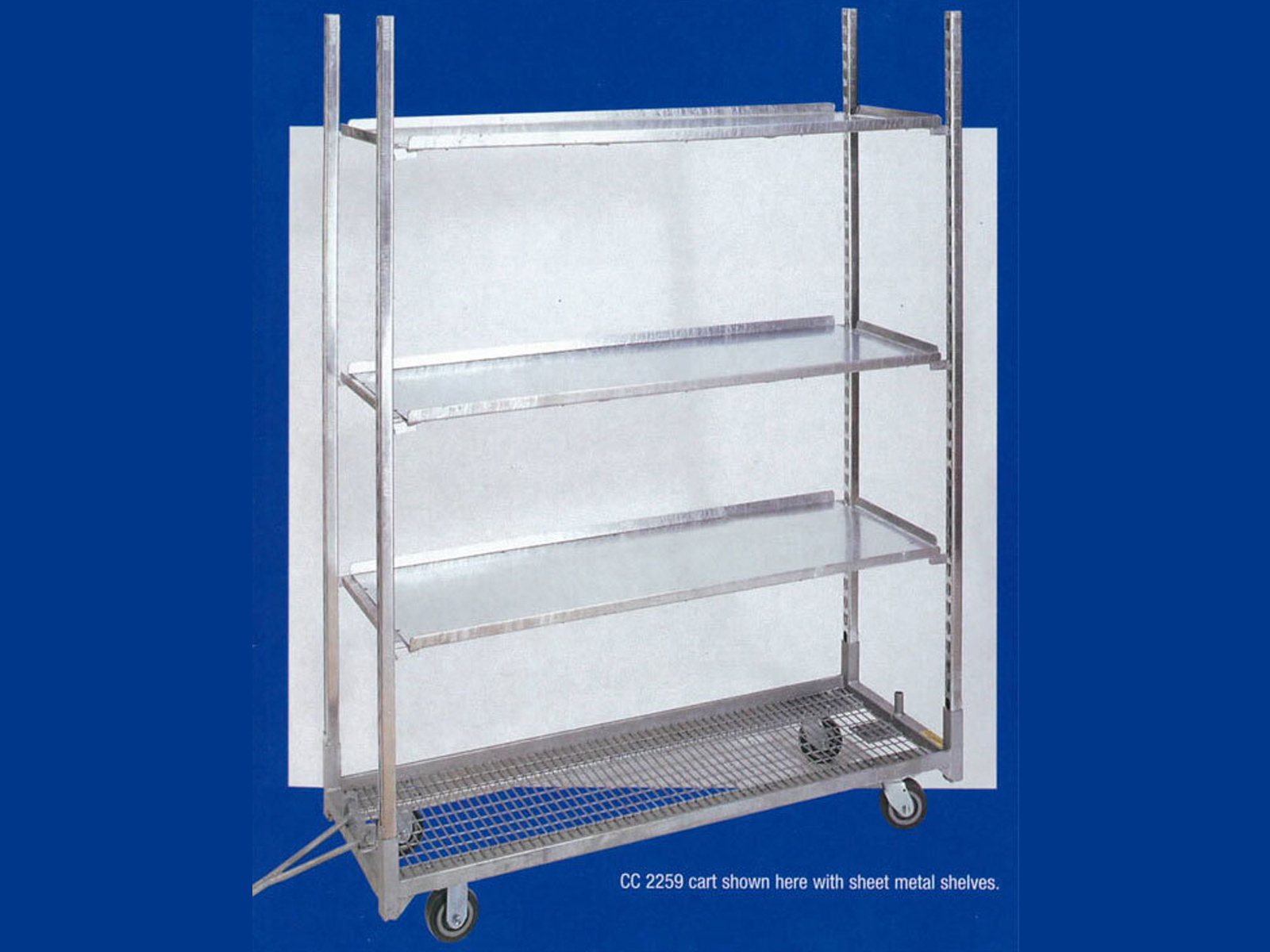

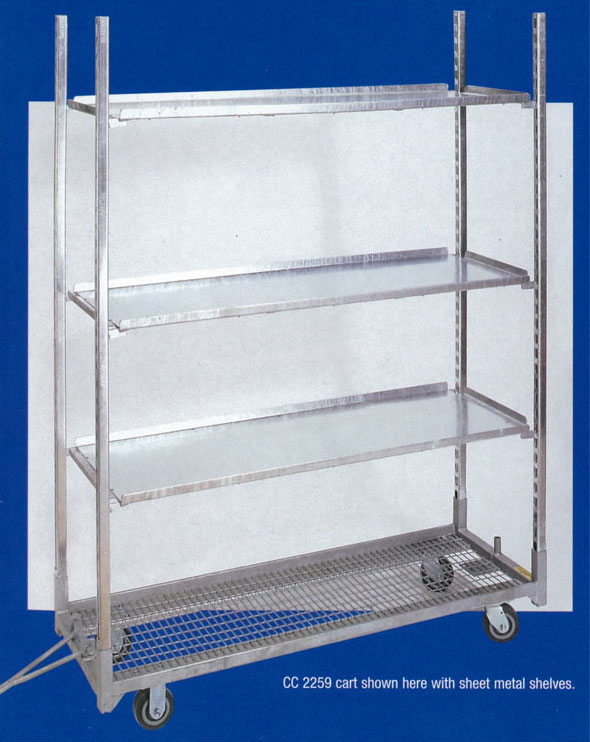

Transportation Cart (Hook In Shelf Style) Uses: These units are ideally suited for shipping a wide variety of products including bedding plants, perennials, and hanging baskets. Size: •22" wide cart std length 53", 59", 63", 70" or 73" •31" wide cart std length 44", 46" or 63" •44" wide cart std length 46" or 54" •81" assembled height with 77" standard post •84" assembled height with 77" standard post •86" assembled height with 77" standard post

Finish:

•Hot Dip Galvanized •Powder Coat Painted - Either Smooth Finish or •Custom Painted For Identification Purposes

Shelf Options:

•Expanded Metal Mesh •Solid Sheet Metal Riveted •Wire Mesh Shelves •Plastic Decking • Wood Decking • Wire Mesh Basket

Casters:

Maintenance Free - Precision Wheel Ball Bearings. Sealed Swivel Caster Raceways. 5" x 2" Standard Wheel Size. Wheel Thread Guards Keep Shrink Wrap Out •EZ Unitized Ball Bearing in 2" Wide by 5", 6" or 8" Diameter •Pneumatic 2" Wide by 8" or 10" Diameter •Standard Application of 2 Rigid and 2 Swivel Per Cart

Products Which Can Be Shipped:

•Propagation Trays •Bedding Plant Trays •Standard - 10-1/2 x 21 •True Size - 10 x 20 •Slim Jims - 8 x 20 •Pots - 2" to 6" or 1 to 2 Gallon •Hanging Baskets - 8", 10" or 12" Diameters

Sizes To Fit Your Truck:

•24' Truck - Inside dimensions of 94" will hold 18 carts - 22" Wide x 59" Long Carts •26' Truck - Inside dimensions of 94" will hold 20 carts - 22" Wide x 59" Long Carts

Materials:

•All steel construction, with mesh, sheet steel, or welded wire inserts

Identification:

•Laser Cut Or Stamped ID Plates On Base •Colour Coded On Base, Rail Of Shelf, Posts Or The Whole Cart •Roller Painted or Powder Painted

Drawbars:

•Standard, Heavy-Duty, Reinforced or Springloaded •Length - 18" Standard, 24" Standard or 24" Heavy-Duty

Posts:

•Standard - 12 Gauge, 3/4 Slot, 36 Holes, 77" Long with optional 1, 2 or 3 Tabs depending on use •Post Options include length, width of slots, gauge of steel i.e. 14 gauge vs 12 gauge and post locks

Capacity:

•Per Cart Rated at 1000 lbs. (Distributed Load) •Per Shelf Rated at 175 lbs. (Distributed Load)

Weight:

•Base - Includes 2" Wide x 5" Diameter Casters and Drawbar - 67 lbs. •Shelf - Mesh 22 lbs. •Post - 9 lbs.
